WUXI AIRSTORM: CHINA
Wuxi Airstorm Intelligence Equipment Co., Ltd. was established in August 2009, located in Wuxi City Jiangsu Province. We are committed to the development research and manufacturing of wire harness processing equipment, and have an excellent design team and advanced processing equipment.
Wuxi Airstorm’s factory covers an area of 10,000 square meters. With the rapid development of the automotive industry, the wire harness processing/production process has been automated and is very professional and meticulous.
In response to market demand, a new company-Wuxi TD machine Co., Ltd. was established, which is focused on the field of customized wire harness processing. We hope to build a bridge between standard and non-standard, and integrate innovation between traditional technology and new field applications to create more value.

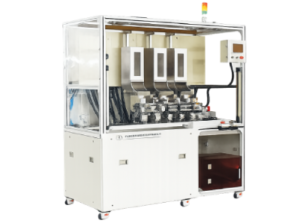

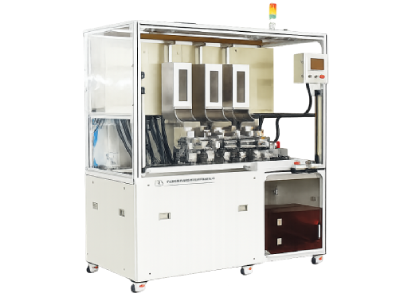

AGA300 Series
Automatic Grommet Assembly Machine
AGA300 is used for assembling the grommet on sensor cable of automotive wire harness, such as the Wheel Speed Sensor, ABS cable. The machine assembles the grommets automatically once the operator inserts the cable into the first grommet modular. The concept and platform of machine ensure the position and angle of each grommet stable and repeatable.
- Modular concept design
- Detect module type automatically
- Programmable HMI for each module
- No hurt on grommet
- Quick & reliable changeover
- Safety protection
- Error proofing system on grommet

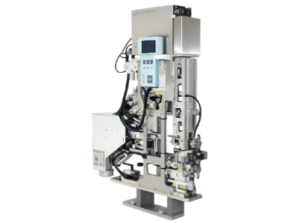

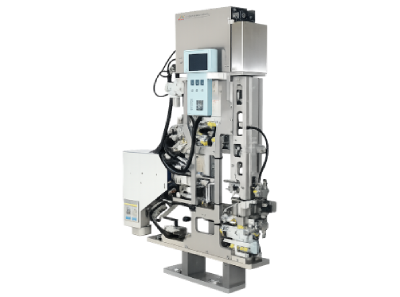

ASM400
Automatic Sealing Machine
ASM400 is used for assembly the Seal on wire as a station on Cutting Machine.
- Modular concept design
- Slim design
- Quick and reliable changeover without tooling help
- Cycle time 0.22 sec per Seal
- Suitable for different Cutting Machine
- Hard, oval, mini and big seals can be processed
- New S14,No adjust, pre-check seal missing
Options
Seal Check, Seal position, missing & piercing on wire

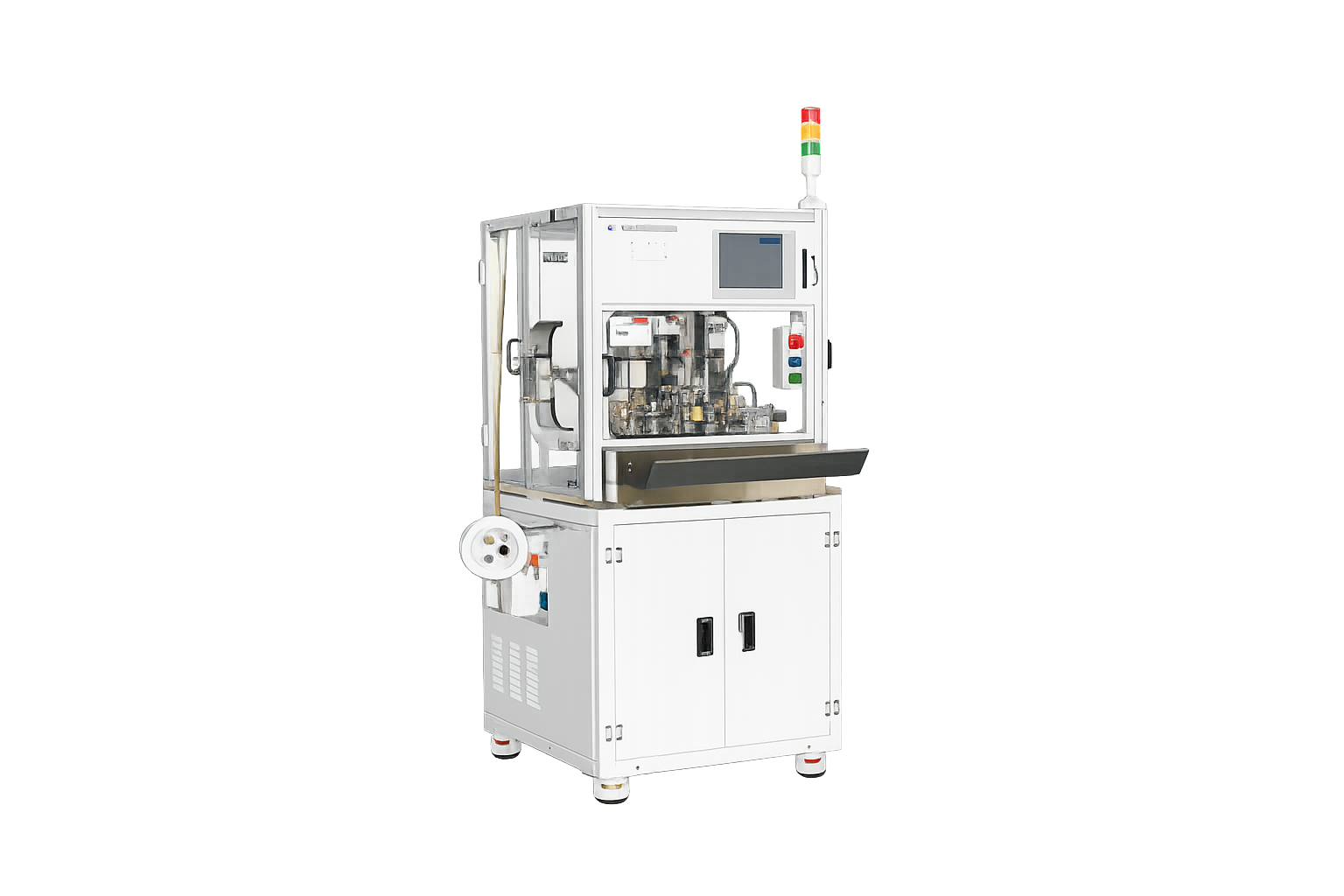

SSC-500 Series
Dual Wire Strip Seal and Crimp Machine
SSC501 is designed for processing the jacket cable and twisted cable. It integrates three functions, sealing-stripping-crimping. Each function can be selected individually. It is a semiautomatic machine. It crimps the terminal one by one and it makes the CFM work in the normal way. This machine save much time and keep stable quality due to its smart design.
- Quick changeover production
- Parameter saving &loading
- Waste segregated collection system
- PC touch panel, PC NET optional
- Each function can be turned ON/OFF
- Sensor actuator
- Default configuration:
1) Active paper roller 2) Carrier cutter
3) Bad crimping cutter 4) CFM
5) Seal SealS14 self-learning 6) Wire color detection
7) Stripping detection(1/2 detectable)

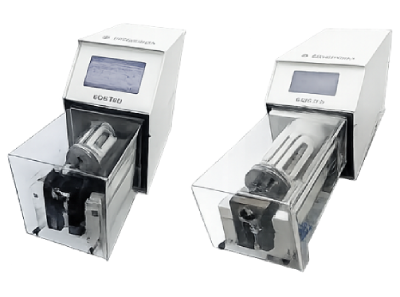

ACS1590/ACS2515
Semiautomatic Coaxial Cable Stripping Machine
Production proven mechanics, combined with state of the art electronics and a 3D Graphical operation interface an easy to use platform which offers maximum efficiency.
The coaxial cable stripping machine ACS1590 can easily process coaxial and triaxial cables with a maximum outside diameter of 15mm(0.59″)(ACS2515 can have a maximum outside diameter of 25mm ).Due to the unique 4 blade concept the machine is able to strip thin, tough and slightly out of round insulations. With a sample programming library and 500 program memory, this machine is ideal for low volume, quick change over applications as well as high volume production runs, giving the best possible flexibility and productivity to your production methods.
- Password protection with different user
- Able to strip very thin and tough insulations due to the unique 4 blade concept

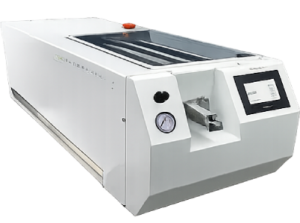

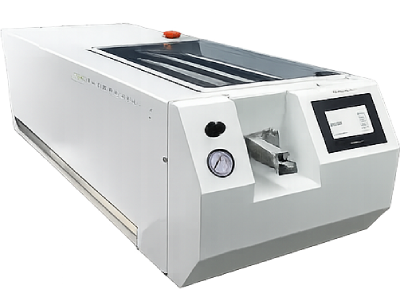

AJS2460
Jacket Stripping Machine
The AJS2560 jacket stripping machine can strip the jackets of round wires and cables up to 26 mm in diameter with a stripping length up to 600 mm.
The solid, powerful machine processes thick, tough, soft and thin insulation materials. Simple operation, short cycle times and a universal blade design guarantee a good return on investment. The rotating 4-blade system centers the cable and creates precise incisions into the cable jacket. After the cable jacket has been cut, it is removed using a strong electric motor (full / partial or window strip can be selected). Pneumatically operated clamping jaws guarantee optimal cable retention during the stripping processing, then waste insulation material is automatically ejected.
- Diagnostics features
- One programing for two sides processing

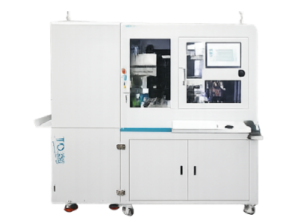

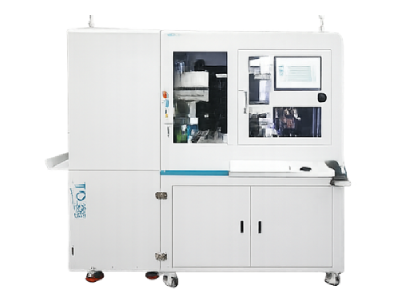

TD330
Plugging Machine
As the fourth-generation upgraded model of the 300/310/320 series, the TD330 is specially designed for blocking holes in automotive connectors. featuring greater flexibility, speed and stability. It is perfectly compatible with standard and special plugs. Customer can choose connector automatic or manual feeding. It supports up to 8 types of blind blocks online simultaneously, greatly enhancing the flexibility of the equipment. Meanwhile, the CT of the equipment has been significantly optimized to 0.7 seconds. This design precisely meets the production demands of small batches and multiple varieties. With a single device, it can fulfill the multi-directional plugging requirements, saving the initial equipment investment for customers.
- Poka yoke
- Standard and special plugs compatible
- Optimized route manually
- Coordinate generates after drawing loading
- Up to 4seal+3pin or 8seal online

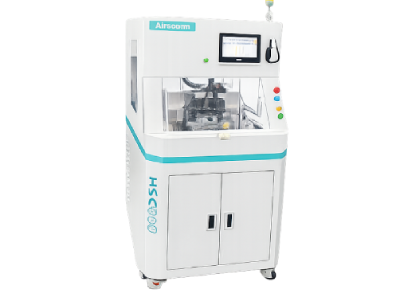

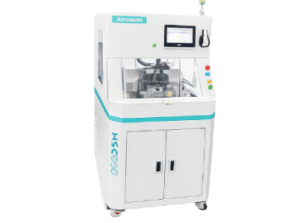

HSC 800-5/7
HV Cable Stripping Cutting Folding Machine
HSC800 is applied to the processing of the high-voltage coaxial cable of new energy. lt can perform up to seven functions: outer jacket stripping,foil removing,shield cutting,shield flipping,shield brushing,secondary shield cutting and inner insulation stripping(also can half-stripping).It is a semi-automatic machine, easy to operate and with a user-friendly HMI.Each functional unit can be opened and closed independently, for example, it can also process cable harness without aluminum foil layer. The HSC800 has changed the original seven manual processing steps, into only one step in a fully-automatic sequence, greatly improved the production efficiency and quality, is a cost-effective solution.
- Changeover without tooling help in 3 minutes
- Parameter saving & loading
- PC touch HMI,PC-NET optional
- With trigger sensor
- Each function can be turned ON/OFF
- Wide range of cable size
- Adjustable fix force
- Shield brushing (-7)
- Secondary shield cutting (-7)
The (-7)in this brochure refers to the features contained in the high specification edition of the device HSC800-7.

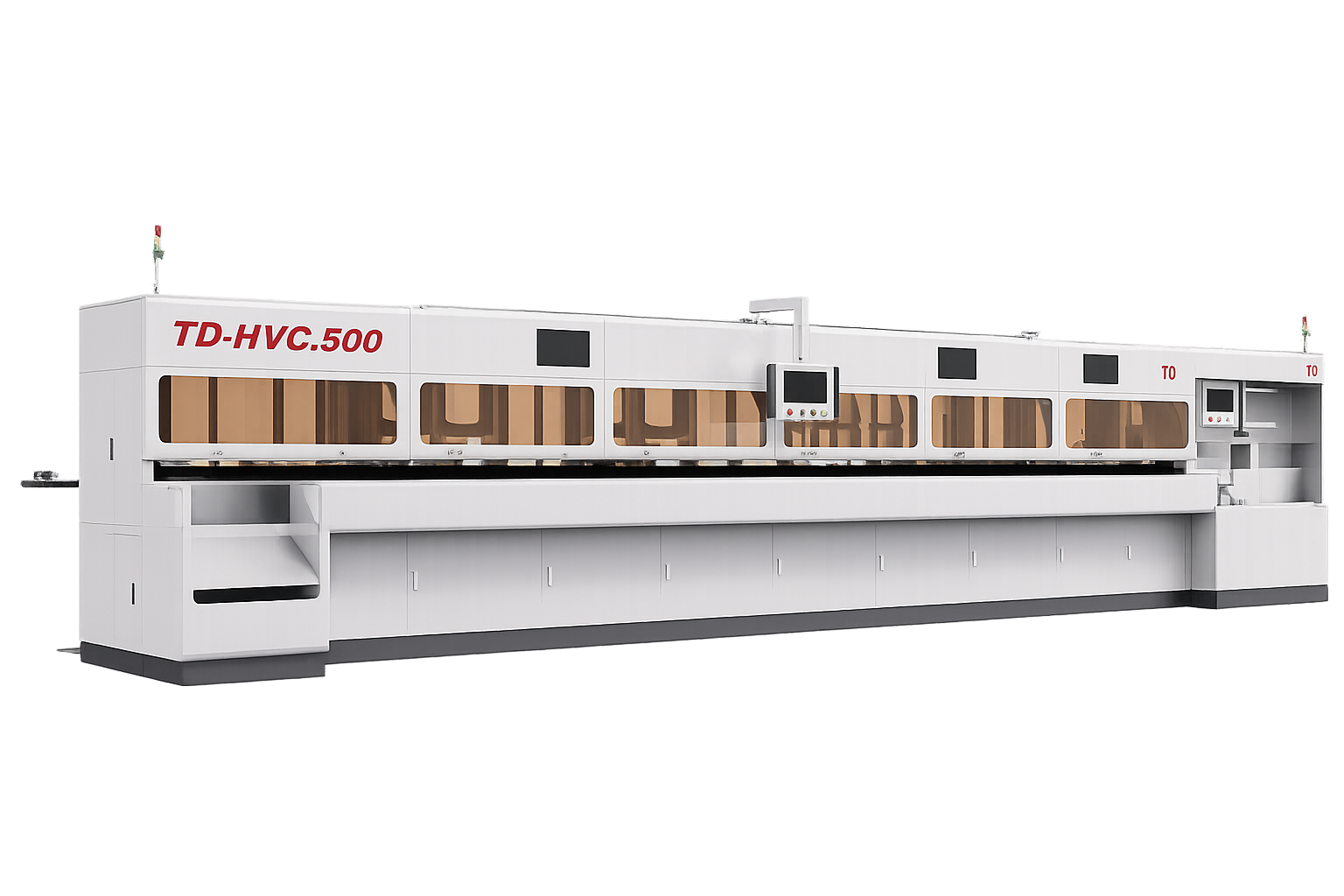

TD Line-XXX
Customized Auto Line
TD LINE-XXX has been platformization/modularization.Mainly used in new energy HV wire harness, communication wire harness and sensor wire harness.lt can meet you various customization needs.

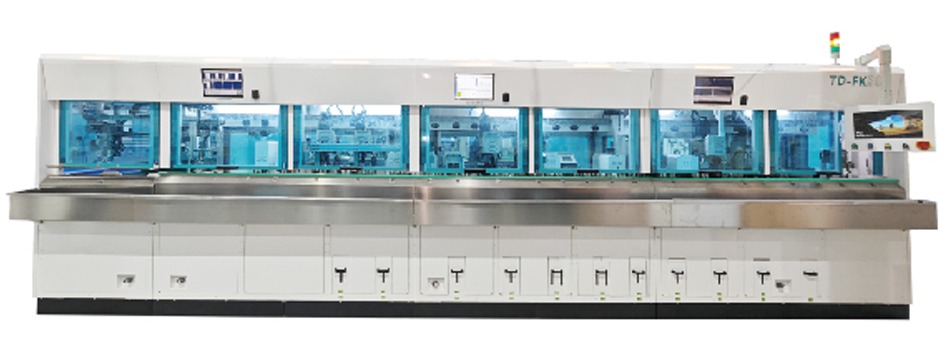

TD-FK500
TD- FAKRA Automatic Production Line
TD-FAKRA Automatic Production Line can meet the processing of TE MATE AX(Fakra Mini) of products.
Processing Length | ≥90mm(single end), ≥380mm(U-Shaped) |
Cycle Time | ≤8.5s(A&B side) |
